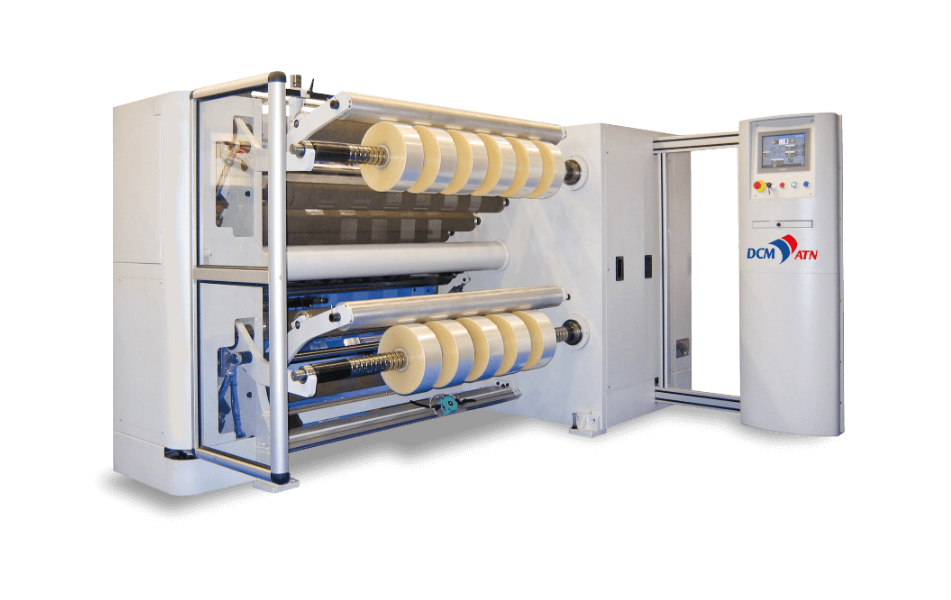

Panthere 4 Slitter rewinder

DCM France Major player in Press room equipment for Flexible & Pkg segments

High quality converting machines for Flexible Packaging & Shrink sleeves

SLITTER REWINDER
Centre rewinding
Versatility and high performances

PANTHERE is a slitter rewinder well known to many converters all over the world. It is highly appreciated for its rewinding capacity (800 mm diameter reels), its easy adjustment and the quality of its production. This is due to its accurate tension control and cutting precision. The machine’s performance level and quality are widely recognised, along with its high reliability.

MAIN SPECIFICATIONS

  • Width: 800 to 1600 mm
  • Diameter at unwinder: 1000 or 1300 mm
  • Diameter at rewinders: 2 x 800 mm
  • Minimum cut: 20 mm
  • Production speed: 600 m/min

APPLICATIONS

  • Candies (twist, overstrip , understrip
  • Food packaging, cosmetic, toilet, frozen products
  • Copper layer bobbins
  • Glass fabric reels

SUBSTRATE

film – paper – board – aluminum

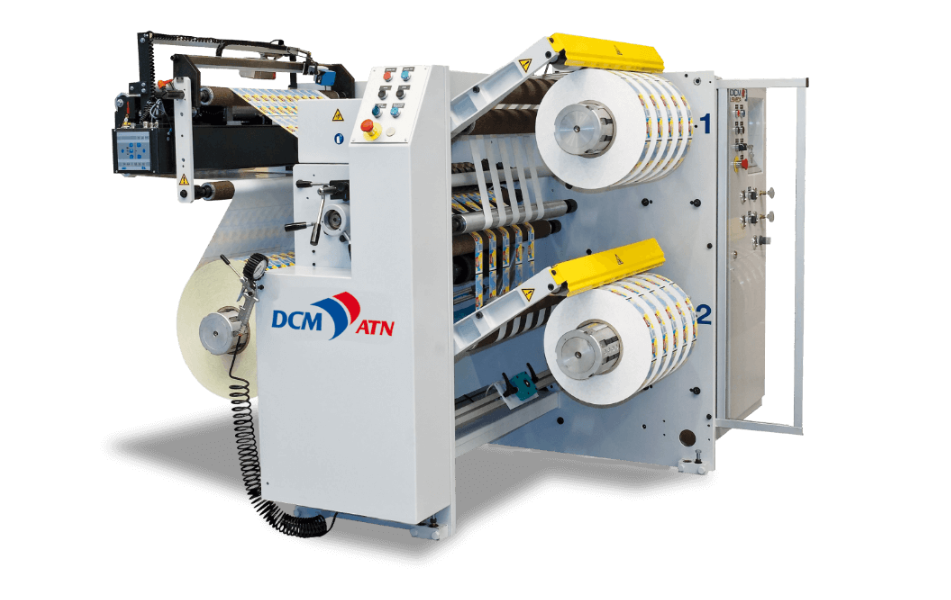

Serval Slitter rewinder for narrow web
SERVAL is a compact slitter rewinder with two rewinding shafts designed for narrow web gravure, Flexo or offset printing.

MAIN SPECIFICATIONS

  • Web width : 680 mm 800 mm
  • Diameter at unwinder 800 mm
  • Diameter at rewinder 610 mm
  • Production speed 500 m/min
  • Rewinding on 2 shafts

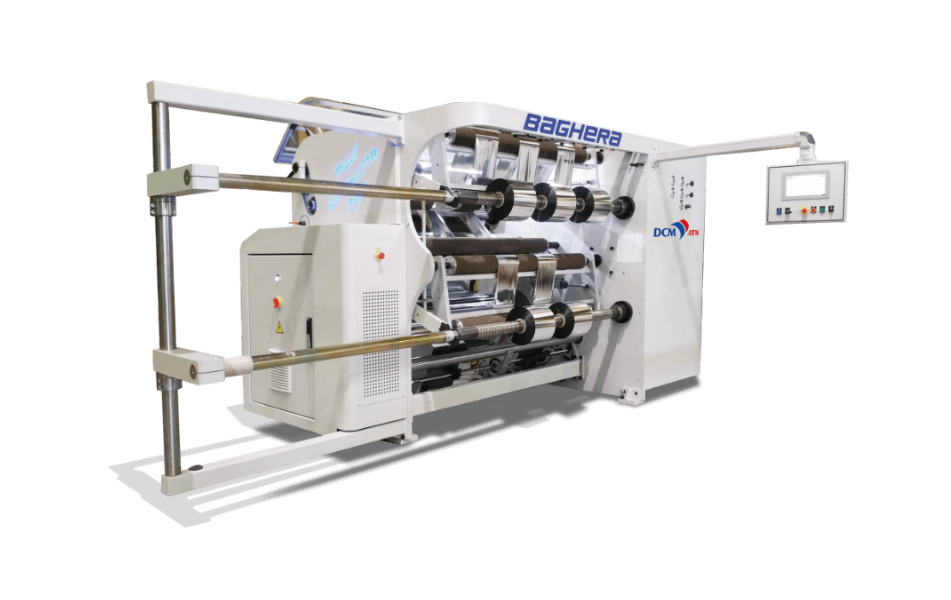

Baghera Compact Slitter Rewinder Centre rewinding

MAIN SPECIFICATIONS

  • Web width min max: 500 mm 1450 mm (20” / 57”)
  • Maximum total width of the slit rolls: 1400 mm (55”)
  • Mother roll max diameter: 800 mm (31.5”)
  • Mother roll max weight: 800 kg (1760 lbs)
  • Unwind max web tension: 400 N (88 lbs)
  • Slit roll max diameter: 610 mm (24”)
  • Max weight per rewind shaft: 250 kg (550 lbs)
  • Max web tension per shaft: 250 N (55 lbs)
  • Production speed: 500 m/min (1640 fpm)
